Installation Guide: TwinZ Design Bolt-on Diffuser |
|
|
| 26 Beiträge - Member
|
 |
|
Hey zusammen....
Habe hier noch eine "funktionierende" Anleitung für den Anbau des TwinZ Design Bolt On Diffuser gefunden.
Viel Spass beim Zusammenbau...
EDIT:
Achtung....
Dies ist ist für die US Version (2 Plätzer)
Die EU Version hat anderes Montagezubehör und wird in gewissen Punkten auch auf eine andere Weise montiert.
Zitat: Australian ZX Forum
For the right installation of your TwinZ Design bolt-on diffuser we recommend following these steps to get the best attachment and fitment to your OEM rear bumper and chassis.
The diffuser comes with:
- 2 metal brackets
- 8 bolts (10mm)
- 8 nuts (10mm)
- 16 big washers
- 4 stobols
- 4 nuts (8mm)
- 8 small washers
INSTALL PROCESS:
1. Remove the OEM rear bumper out of the car.
2. Unbolt the catback section of the exhaust system to make the installation easier.

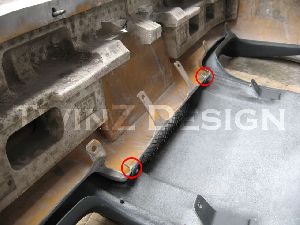

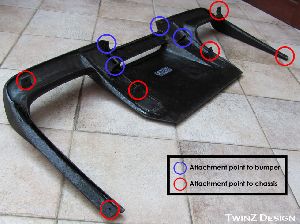

3. Once you have the OEM rear bumper out, place the bolt-on diffuser under the OEM rear bumper until to get the mounting points as pictured.
4. Use 2 stobols to attach the middle section of the bumper with the diffuser.
5. Proceed to install the OEM rear bumper with the diffuser partially attached to it.
6. While installing the bumper, be VERY CAREFULL with the attaching points above the exhaust opennings. You will have to press down this part of the bumper and diffuser together with both of your hands and place them in front of the aluminium bumper bar as pictured bellow. If you don't do it this way, you could damage this attaching point.

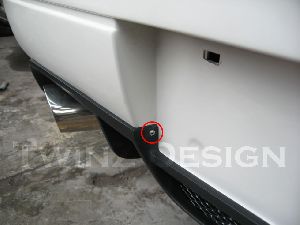

7. Bolt the attaching points over the exhaust opennings and the ones near the bumper wheel arch as pictured.
8. Use the attachment brackets to attach the lower section of the diffuser with the chassis.
9. Press the diffuser against the bumper and bolt the license plate section of the diffuser to the bumper using 2 stobols to get the best fitment.
10. Some OEM bumpers get wavy with time, so we recommend using Sikaflex silicon on the rear section of the diffuser to ensure the best seal and fitment between the diffuser and bumper.
Greetz Marco
